CAFTA Scripts

Cutset Order is the number of basic events in a cutset.  In a long list of cutsets, how do you find the cutset that has the maximum number of basic events?

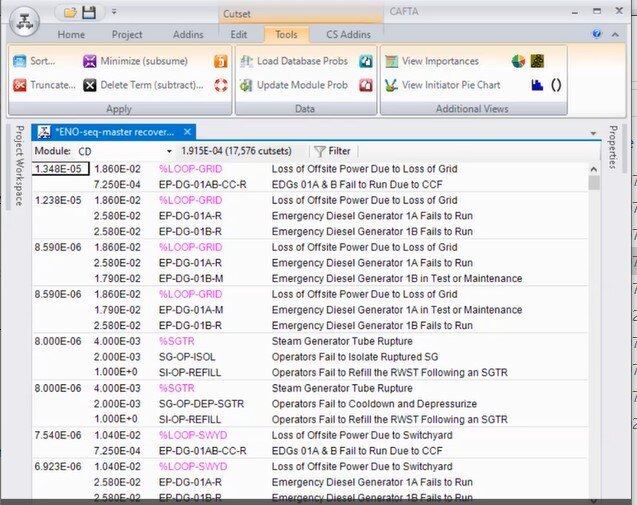

Cutsets



One way is a manual two-step process in CAFTA:

  1. Sort the cutsets on Order
  2. Scroll to the last cutset and count the inputs

The CAFTA script looks like this.  Copy this text, paste it into CAFTA's script editor, and run it:

'Determine maximum MCS order.
CS.Sort(CutsetModule.enumSortMethod.ByOrder)
messagebox.show("Max. cutset order = " & _
   CS.CutsetRows(CS.CutsetRows.count-1).inputs.count)

Cutsets



 This video link shows how to run the script in CAFTA.
